Absolute and relative cavity entry phases
There are three ways to define the phase of a cavity: by its relative entry phase \(\phi_{0,\,\mathrm{rel}}\), its absolute entry phase \(\phi_{0,\,\mathrm{abs}}\) or its synchronous phase \(\phi_s\) (still under implementation).
The relation between relative and entry phases is: \begin{equation} E_0\cos{\phi_{0,\,\mathrm{abs}}} = E_0\cos{(\phi_{0,\,\mathrm{rel}} + \phi_\mathrm{in})} \end{equation} where \(\phi_\mathrm{in}\) is the phase at which the synchronous particle enters the cavity, \(E_0\) is the amplitude of the electric field.
Preparation
Load libraries
[1]:
from pathlib import Path
import matplotlib.pyplot as plt
from lightwin.config.config_manager import process_config
from lightwin.beam_calculation.beam_calculator import BeamCalculator
from lightwin.beam_calculation.factory import BeamCalculatorsFactory
from lightwin.beam_calculation.simulation_output.simulation_output import SimulationOutput
from lightwin.core.accelerator.accelerator import Accelerator
from lightwin.core.accelerator.factory import NoFault, WithFaults
from lightwin.failures.fault_scenario import FaultScenario, fault_scenario_factory
from lightwin.visualization import plot
from lightwin.constants import example_config, example_results
plt.rcParams["figure.figsize"] = (15, 5)
Set configuration dicts
[2]:
CONFIG_KEYS = {
'files': 'files',
'beam_calculator': 'generic_envelope1d',
'beam': 'beam',
'plots': 'plots_minimal',
'wtf': 'generic_wtf',
'design_space': 'generic_design_space',
}
override = {'beam_calculator': {'flag_phi_abs': True}, 'plots': {'energy': False}}
config_abs = process_config(example_config, CONFIG_KEYS, warn_mismatch=True, override=override)
plots_phase = config_abs['plots']
[INFO ] [log_manager.py ] Starting log for LightWin - Version: 0.9.3.dev5+g0425b693.d20250408, Commit: fb0b1237100e4632c8604ef7123ed5bc6736e353
[INFO ] [files_specs.py ] Setting project_path = PosixPath('/home/placais/LightWin/src/lightwin/data/ads/lw_results')
Setting log_file = 'lightwin.log'
[3]:
override = {
'beam_calculator':
{
'flag_phi_abs': False
},
'plots': {
'cav': True
},
'wtf': {
'objective_preset': 'rephased_ADS',
}
}
config_rel = process_config(example_config, CONFIG_KEYS, warn_mismatch=True, override=override)
plots_complete = config_rel['plots']
[INFO ] [table_spec.py ] .toml table [files] loaded!
[INFO ] [table_spec.py ] .toml table [beam] loaded!
[INFO ] [table_spec.py ] .toml table [generic_envelope1d] loaded!
[INFO ] [table_spec.py ] .toml table [plots_minimal] loaded!
[INFO ] [table_spec.py ] .toml table [generic_design_space] loaded!
[INFO ] [table_spec.py ] .toml table [generic_wtf] loaded!
[INFO ] [log_manager.py ] Starting log for LightWin - Version: 0.9.3.dev5+g0425b693.d20250408, Commit: fb0b1237100e4632c8604ef7123ed5bc6736e353
[INFO ] [files_specs.py ] Setting project_path = PosixPath('/home/placais/LightWin/src/lightwin/data/ads/lw_results')
Setting log_file = 'lightwin.log'
Set BeamCalculator objects
[4]:
factory = BeamCalculatorsFactory(**config_abs)
solver_abs = factory.run_all()[0]
factory = BeamCalculatorsFactory(**config_rel)
solver_rel = factory.run_all()[0]
Set Accelerator objects
[5]:
factory = WithFaults(beam_calculators=solver_abs, **config_abs)
accelerators_abs = factory.run_all()
for acc in accelerators_abs:
acc.name += r' (absolute $\phi_0$)'
working_abs = accelerators_abs[0]
broken_abs = accelerators_abs[1]
factory = WithFaults(beam_calculators=solver_rel, **config_rel)
accelerators_rel = factory.run_all()
for acc in accelerators_rel:
acc.name += r' (relative $\phi_0$)'
working_rel = accelerators_rel[0]
broken_rel = accelerators_rel[1]
working = (working_abs, working_rel)
broken = (broken_abs, broken_rel)
[INFO ] [factory.py ] First initialisation of ListOfElements, ecompassing all linac. Created with dat_file = PosixPath('/home/placais/LightWin/src/lightwin/data/ads/ads.dat')
[INFO ] [list_of_elements.py ] Successfully created a ListOfElements with self.w_kin_in = 20.0 MeV and self.phi_abs_in = 0.0 rad.
[WARNING ] [factory.py ] You asked LW a simulation in absolute phase, while there is at least one cavity in relative phase in the .dat file used by TW. You can expect a phase difference between LightWin results and TraceWin results for the same input .dat, after the first failed cavity. No difference should appear with the output .dat, or when using TraceWin solver within LightWin.
[INFO ] [factory.py ] First initialisation of ListOfElements, ecompassing all linac. Created with dat_file = PosixPath('/home/placais/LightWin/src/lightwin/data/ads/ads.dat')
[INFO ] [list_of_elements.py ] Successfully created a ListOfElements with self.w_kin_in = 20.0 MeV and self.phi_abs_in = 0.0 rad.
[WARNING ] [factory.py ] You asked LW a simulation in absolute phase, while there is at least one cavity in relative phase in the .dat file used by TW. You can expect a phase difference between LightWin results and TraceWin results for the same input .dat, after the first failed cavity. No difference should appear with the output .dat, or when using TraceWin solver within LightWin.
[INFO ] [factory.py ] First initialisation of ListOfElements, ecompassing all linac. Created with dat_file = PosixPath('/home/placais/LightWin/src/lightwin/data/ads/ads.dat')
[INFO ] [list_of_elements.py ] Successfully created a ListOfElements with self.w_kin_in = 20.0 MeV and self.phi_abs_in = 0.0 rad.
[INFO ] [factory.py ] First initialisation of ListOfElements, ecompassing all linac. Created with dat_file = PosixPath('/home/placais/LightWin/src/lightwin/data/ads/ads.dat')
[INFO ] [list_of_elements.py ] Successfully created a ListOfElements with self.w_kin_in = 20.0 MeV and self.phi_abs_in = 0.0 rad.
Propagate the beam

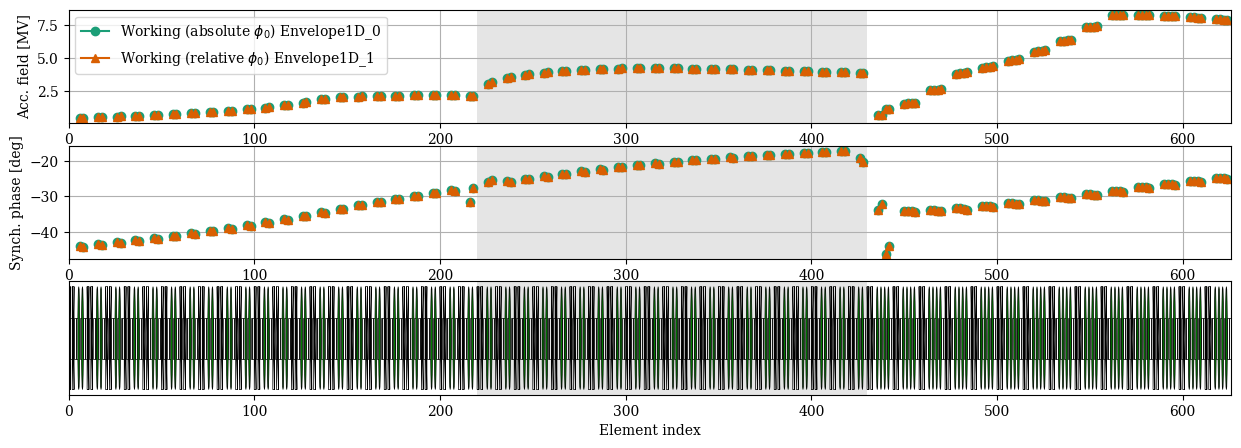

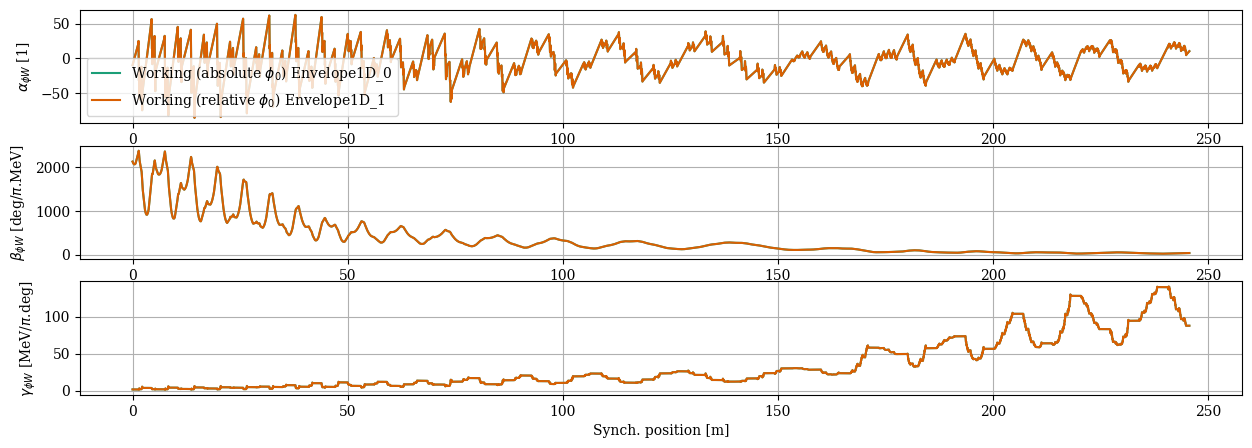

Nominal linac
[6]:
_ = solver_abs.compute(working_abs)
_ = solver_rel.compute(working_rel)
figs = plot.factory(working, plots_phase, save_fig=False, clean_fig=False)
[INFO ] [beam_calculator.py ] Elapsed time in beam calculation: 0:00:01.297383
[INFO ] [beam_calculator.py ] Elapsed time in beam calculation: 0:00:01.218930
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
The reference \(\phi_0\) that is used is the one defined in the .dat. As a matter of a fact, we need to propagate the beam a first time to know the entry phase of the synchronous particle in every cavity. This quantity is necessary to link \(\phi_{0,\,\mathrm{abs}}\) with \(\phi_{0,\,\mathrm{rel}}\).

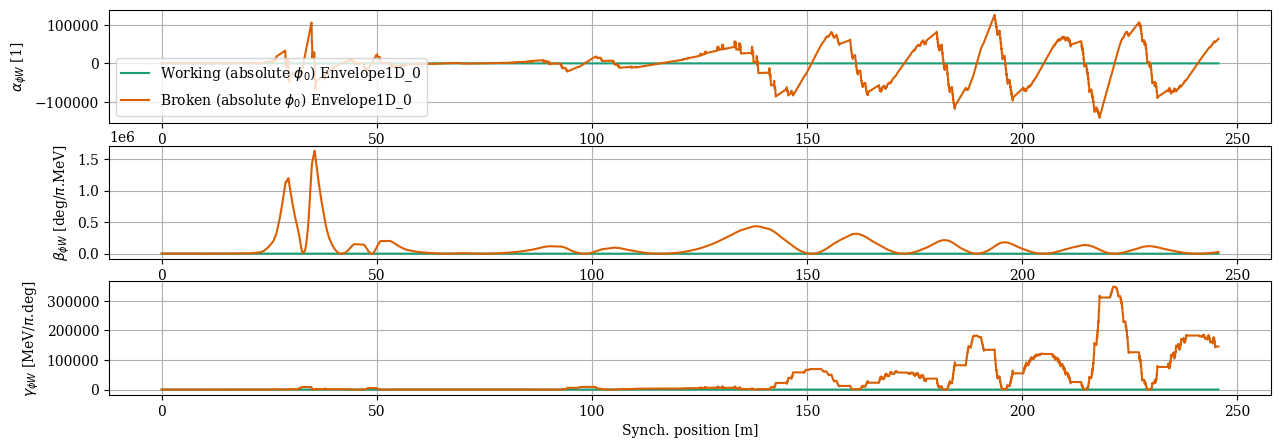

Linac with one broken cavity
[7]:
fault_scenarios_abs = fault_scenario_factory(accelerators_abs, solver_abs, config_abs['wtf'], config_abs['design_space'])
[INFO ] [design_space.py ] Created variables:
====================================================================================================
Variable | Element | x_0 | Lower lim | Upper lim
----------------------------------------------------------------------------------------------------
$\phi_{0, abs}$ [deg] | FM10 | 55.649 | -360.000 | 360.000
$\phi_{0, abs}$ [deg] | FM12 | 101.288 | -360.000 | 360.000
$\phi_{0, abs}$ [deg] | FM9 | 272.279 | -360.000 | 360.000
$k_e$ [1] | FM10 | 1.649 | 1.319 | 4.756
$k_e$ [1] | FM12 | 1.698 | 1.359 | 4.756
$k_e$ [1] | FM9 | 1.649 | 1.319 | 4.756
====================================================================================================
Created constraints:
====================================================================================================
Constraint | Element | x_0 | Lower lim | Upper lim
----------------------------------------------------------------------------------------------------
====================================================================================================
[INFO ] [factory.py ] Created variables:
====================================================================================================
Variable | Element | x_0 | Lower lim | Upper lim
----------------------------------------------------------------------------------------------------
$\phi_{0, abs}$ [deg] | FM10 | 55.649 | -360.000 | 360.000
$\phi_{0, abs}$ [deg] | FM12 | 101.288 | -360.000 | 360.000
$\phi_{0, abs}$ [deg] | FM9 | 272.279 | -360.000 | 360.000
$k_e$ [1] | FM10 | 1.649 | 1.319 | 4.756
$k_e$ [1] | FM12 | 1.698 | 1.359 | 4.756
$k_e$ [1] | FM9 | 1.649 | 1.319 | 4.756
====================================================================================================
Created constraints:
====================================================================================================
Constraint | Element | x_0 | Lower lim | Upper lim
----------------------------------------------------------------------------------------------------
====================================================================================================
[INFO ] [factory.py ] Created objectives:
====================================================================================================
What, where, etc | wgt. | ideal value
----------------------------------------------------------------------------------------------------
w_kin @elt DR36 (out) | 1.0 | +2.57715511997316e+01
phi_abs @elt DR36 (out) | 1.0 | +1.77990507535786e+02
$M_{z\delta}$ @elt DR36 (out) | 1.0 | +0.00000000000000e+00
====================================================================================================
[INFO ] [factory.py ] Initalisation of ListOfElements from already initialized elements: FM9 to DR36.
[INFO ] [list_of_elements.py ] Successfully created a ListOfElements with self.w_kin_in = 23.496060468989743 MeV and self.phi_abs_in = 133.38246030585947 rad.
[8]:
fault_scenarios_rel = fault_scenario_factory(accelerators_rel, solver_rel, config_rel['wtf'], config_rel['design_space'])
[INFO ] [design_space.py ] Created variables:
====================================================================================================
Variable | Element | x_0 | Lower lim | Upper lim
----------------------------------------------------------------------------------------------------
$\phi_{0, abs}$ [deg] | FM10 | 55.649 | -360.000 | 360.000
$\phi_{0, abs}$ [deg] | FM12 | 101.288 | -360.000 | 360.000
$\phi_{0, abs}$ [deg] | FM9 | 272.279 | -360.000 | 360.000
$k_e$ [1] | FM10 | 1.649 | 1.319 | 4.756
$k_e$ [1] | FM12 | 1.698 | 1.359 | 4.756
$k_e$ [1] | FM9 | 1.649 | 1.319 | 4.756
====================================================================================================
Created constraints:
====================================================================================================
Constraint | Element | x_0 | Lower lim | Upper lim
----------------------------------------------------------------------------------------------------
====================================================================================================
[INFO ] [factory.py ] Created variables:
====================================================================================================
Variable | Element | x_0 | Lower lim | Upper lim
----------------------------------------------------------------------------------------------------
$\phi_{0, abs}$ [deg] | FM10 | 55.649 | -360.000 | 360.000
$\phi_{0, abs}$ [deg] | FM12 | 101.288 | -360.000 | 360.000
$\phi_{0, abs}$ [deg] | FM9 | 272.279 | -360.000 | 360.000
$k_e$ [1] | FM10 | 1.649 | 1.319 | 4.756
$k_e$ [1] | FM12 | 1.698 | 1.359 | 4.756
$k_e$ [1] | FM9 | 1.649 | 1.319 | 4.756
====================================================================================================
Created constraints:
====================================================================================================
Constraint | Element | x_0 | Lower lim | Upper lim
----------------------------------------------------------------------------------------------------
====================================================================================================
[INFO ] [factory.py ] Created objectives:
====================================================================================================
What, where, etc | wgt. | ideal value
----------------------------------------------------------------------------------------------------
w_kin @elt DR36 (out) | 1.0 | +2.57715511997316e+01
$M_{z\delta}$ @elt DR36 (out) | 1.0 | +0.00000000000000e+00
====================================================================================================
[INFO ] [factory.py ] Initalisation of ListOfElements from already initialized elements: FM9 to DR36.
[INFO ] [list_of_elements.py ] Successfully created a ListOfElements with self.w_kin_in = 23.496060468989743 MeV and self.phi_abs_in = 133.38246030585947 rad.
[WARNING ] [fault_scenario.py ] The phases in the broken linac are relative. It may be more relatable to use absolute phases, as it would avoid the rephasing of the linac at each cavity.
[9]:

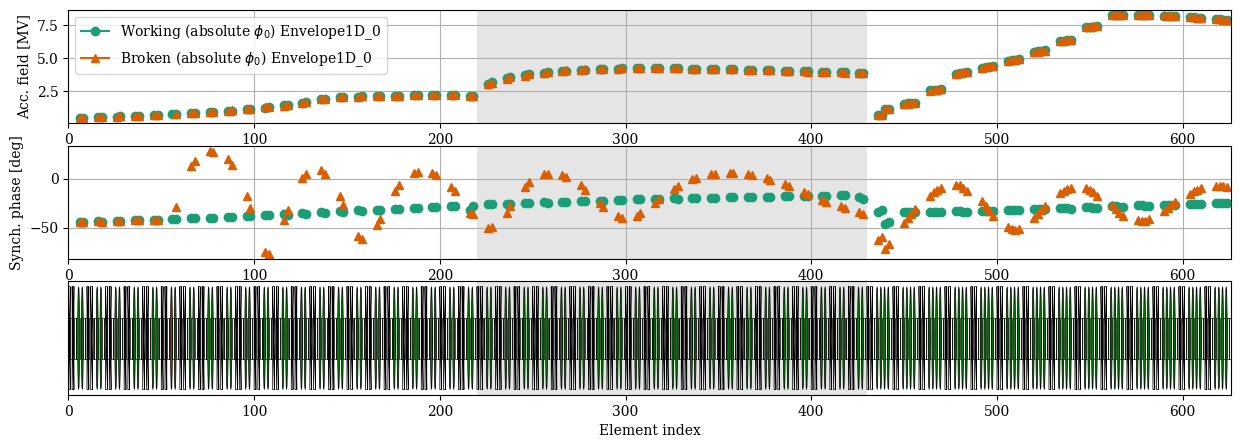

_ = solver_abs.compute(broken_abs)
figs = plot.factory(accelerators_abs, plots_phase, save_fig=False, clean_fig=False)
[INFO ] [beam_calculator.py ] Elapsed time in beam calculation: 0:00:01.251831
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[10]:

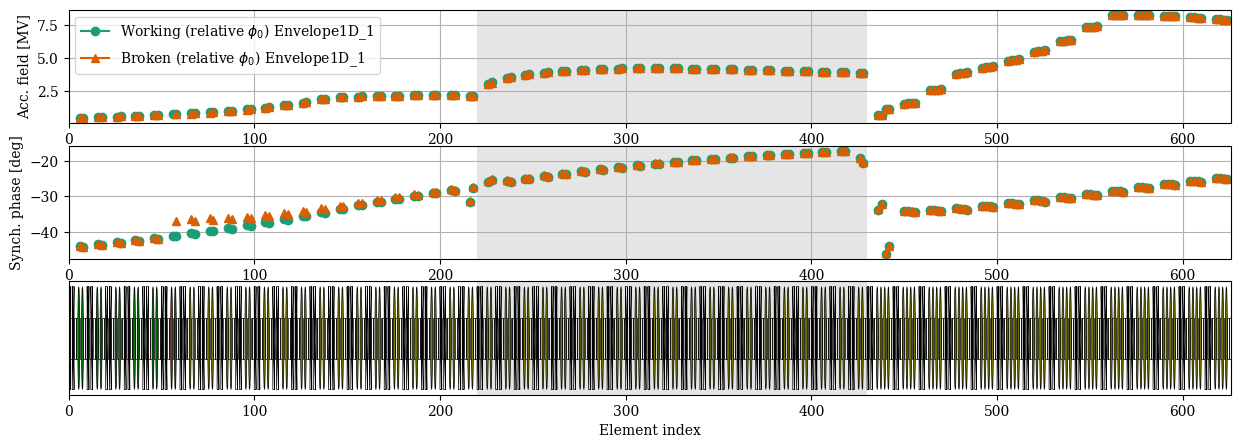

_ = solver_rel.compute(broken_rel)
figs = plot.factory(accelerators_rel, plots_phase, save_fig=False, clean_fig=False)
[INFO ] [beam_calculator.py ] Elapsed time in beam calculation: 0:00:01.209875
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.

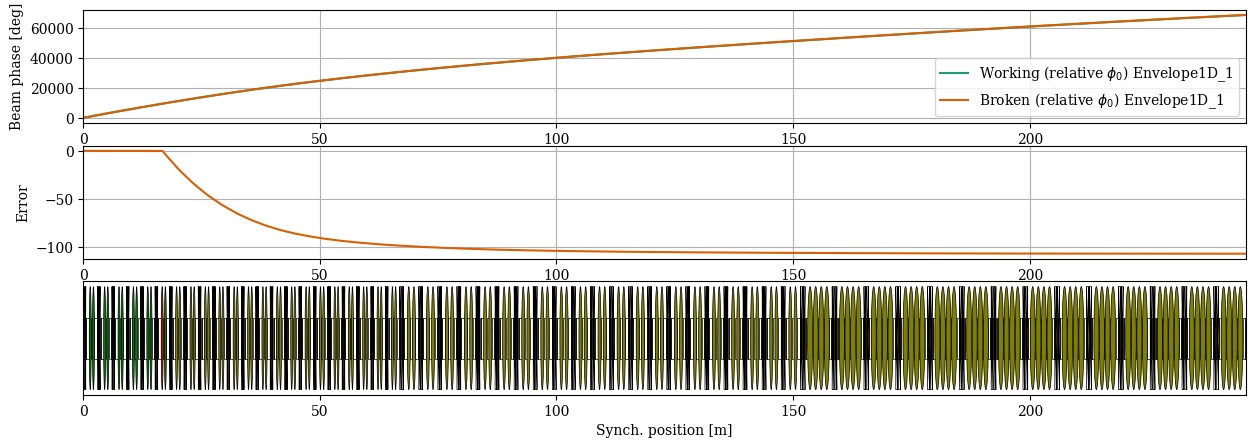

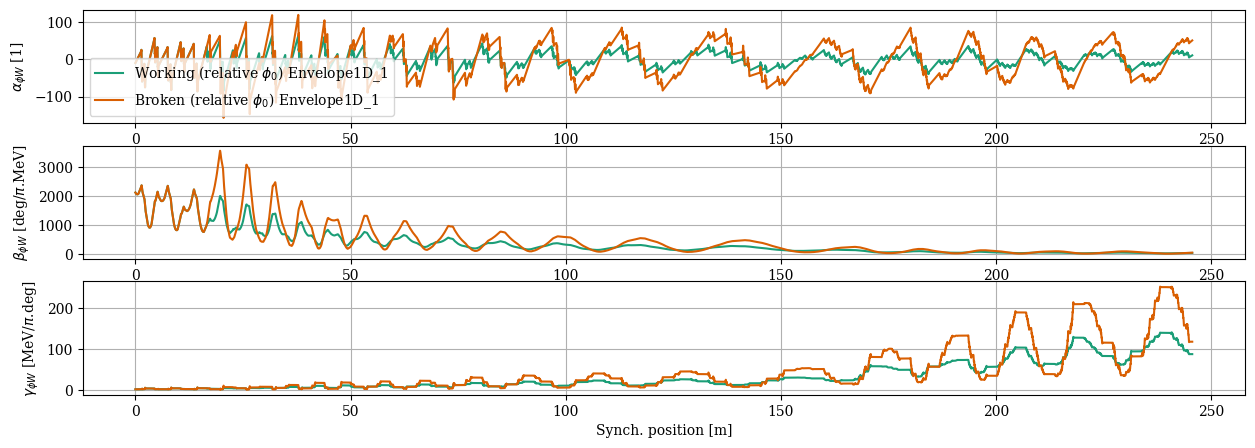

After a cavity failure, the definition of the reference \(\phi_0\) becomes important. With \(\phi_\mathrm{ref} = \phi_{0,\,\mathrm{abs}}\), the cavities after the failure keep their absolute entry phase. With \(\phi_\mathrm{ref} = \phi_{0,\,\mathrm{rel}}\), the cavities after the failure (olive color) are rephased, so that they keep their relative entry phase.

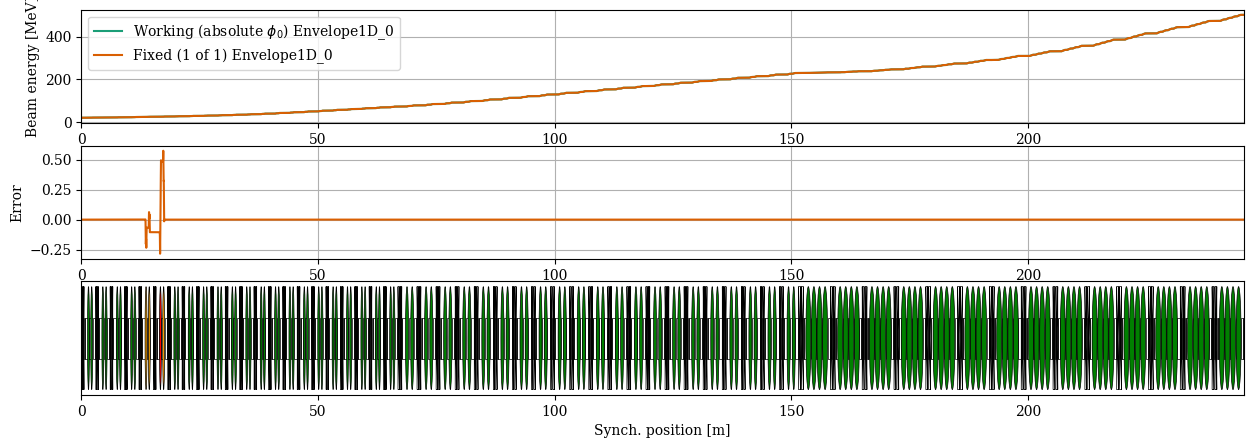

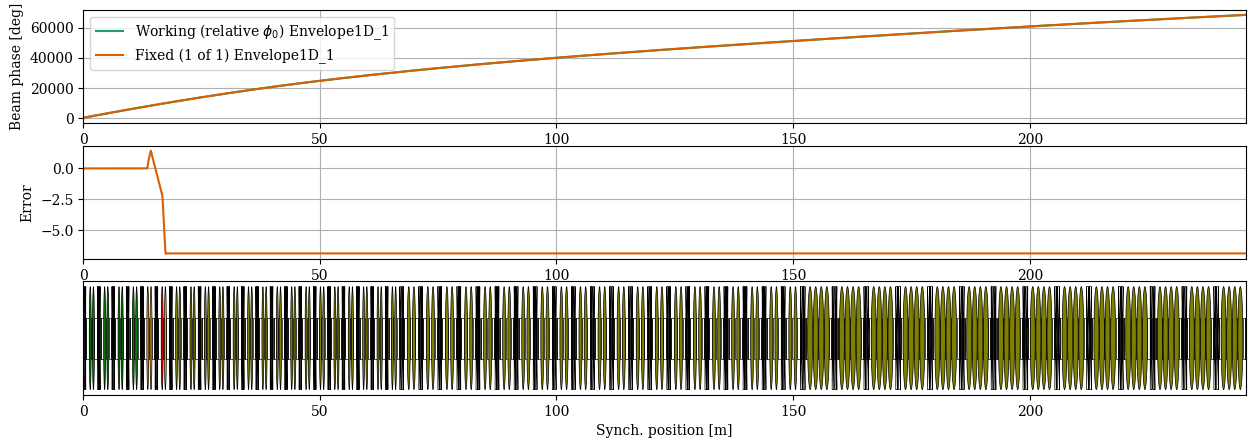

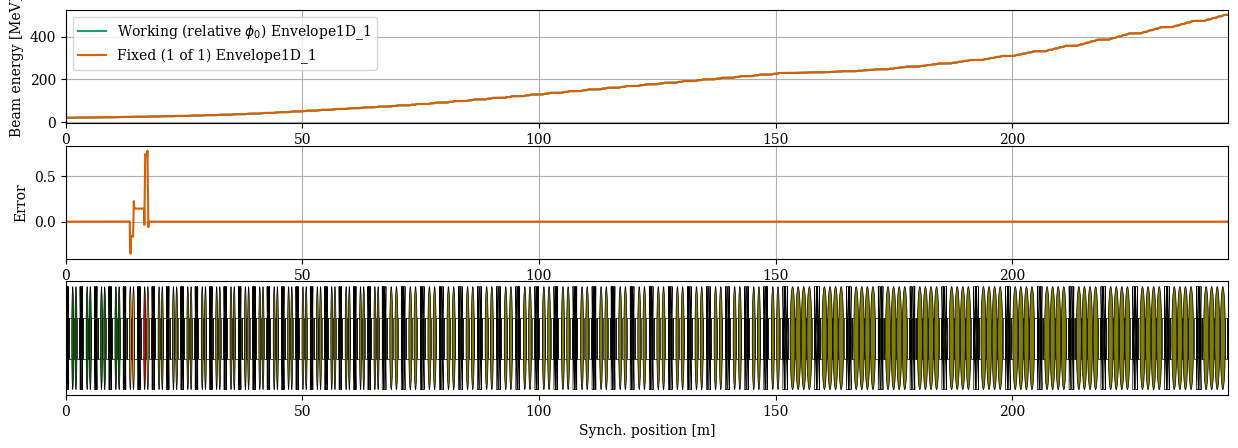

Fixing the fault
In the absolute phase calculation, it is mandatory to retrieve the nominal energy and the nominal phase of the beam at the exit of the compensation zone. In the relative phase calculation, the phase no longer needs to be retrieved, as the integrity of the linac after the failure is rephased.
[11]:

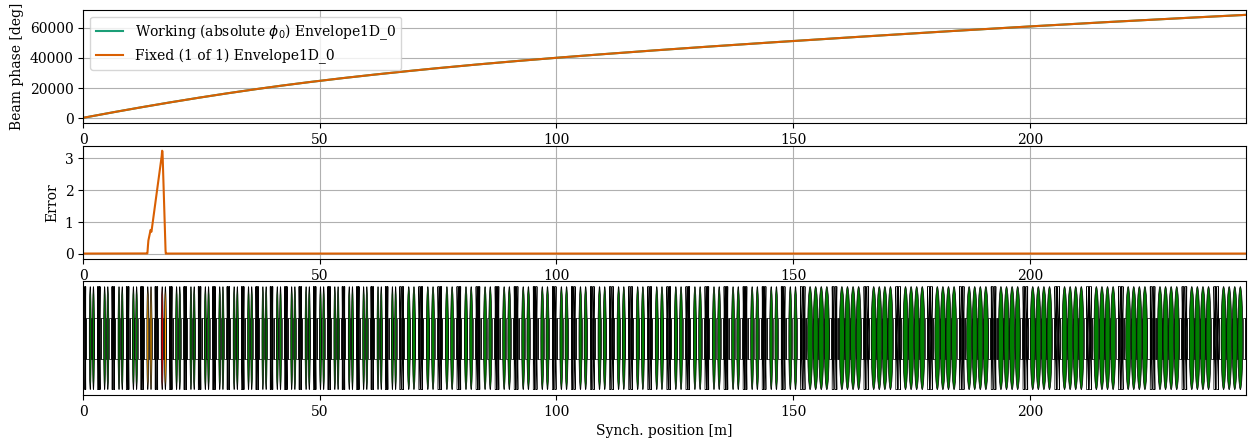

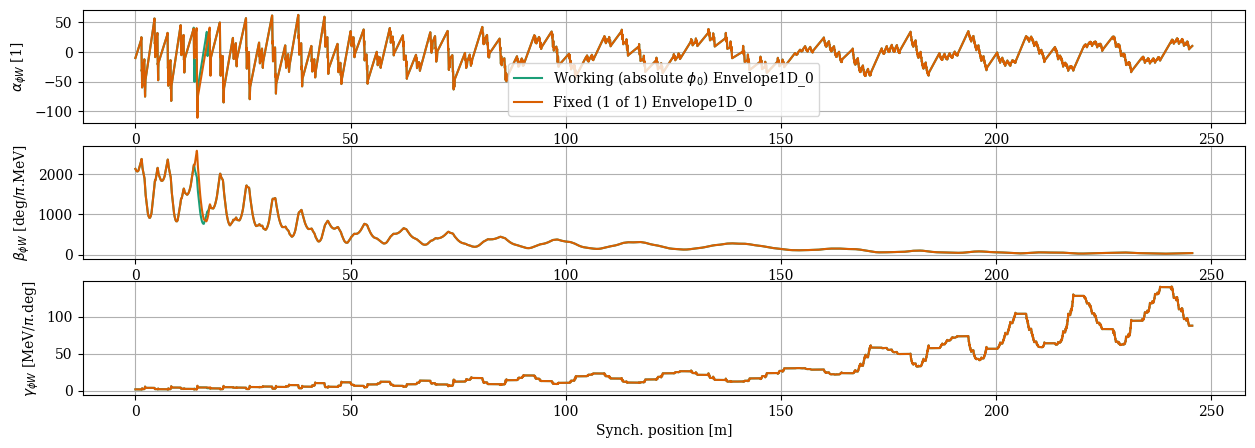

for scenario in fault_scenarios_abs:
scenario.fix_all()
figs = plot.factory(accelerators_abs, plots_complete, save_fig=False, clean_fig=False)
[INFO ] [algorithm.py ] Objective functions results:
# | What, where, etc | wgt. | ideal value | final val.
0 | w_kin @elt DR36 (out) | 1.0 | +2.57715511997316e+01 | +3.52555973393009e-06
1 | phi_abs @elt DR36 (out) | 1.0 | +1.77990507535786e+02 | +2.80239504490964e-06
2 | $M_{z\delta}$ @elt DR36 (out) | 1.0 | +0.00000000000000e+00 | +8.57188357339389e-06
Norm: 9.682983911019546e-06
[INFO ] [debug.py ] Fixed (1 of 1)
----------------------------------------------------------------------------------------------------
name status k_e phi_0_abs phi_0_rel v_cav_mv phi_s
1 FM9 compensate (ok) 1.396623 5.304986 3.839113 0.613335 -0.186859
2 FM10 compensate (ok) 2.174922 0.823152 3.169552 0.971894 -0.924121
3 FM12 compensate (ok) 2.851343 1.889864 3.571021 1.327753 -0.611272
----------------------------------------------------------------------------------------------------
[INFO ] [list_of_simulation_output_evaluators.py] Fit quality:(FIXME: settings in FaultScenario, not config_manager)
----------------------------------------------------------------------------------------------------
end comp zone (DR36) end linac RMS [usual units]
Beam energy [MeV] 0.000% -0.000% 0.000
Beam phase [rad] 0.000% -0.000% 0.000
Norm. $\sigma_\phi$ @ $1\sigma$ [rad] -0.001% -0.002% 0.000
Norm. $\sigma_\phi$ @ $1\sigma$ [MeV] 0.000% 0.001% 0.000
Norm. $\epsilon_{\phi W}$ [$\pi$.rad.MeV] -0.001% -0.001% 0.000
$M_{z\delta}$ 0.000 0.000 nan
----------------------------------------------------------------------------------------------------
[INFO ] [fault_scenario.py ] Elapsed time for optimization: 0:00:08.185213
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[12]:
for scenario in fault_scenarios_rel:
scenario.fix_all()
figs = plot.factory(accelerators_rel, plots_complete, save_fig=False, clean_fig=False)
[INFO ] [algorithm.py ] Objective functions results:
# | What, where, etc | wgt. | ideal value | final val.
0 | w_kin @elt DR36 (out) | 1.0 | +2.57715511997316e+01 | -3.04568905562519e-06
1 | $M_{z\delta}$ @elt DR36 (out) | 1.0 | +0.00000000000000e+00 | +1.37553919337119e-05
Norm: 1.4088542475131387e-05
[INFO ] [debug.py ] Fixed (1 of 1)
----------------------------------------------------------------------------------------------------
name status k_e phi_0_abs phi_0_rel v_cav_mv phi_s
1 FM9 compensate (ok) 1.573024 5.464923 3.999051 0.693787 -0.030682
2 FM10 compensate (ok) 1.70301 0.549345 2.862516 0.758889 -1.24041
3 FM12 compensate (ok) 3.035455 1.742644 3.82891 1.412413 -0.330618
----------------------------------------------------------------------------------------------------
[INFO ] [list_of_simulation_output_evaluators.py] Fit quality:(FIXME: settings in FaultScenario, not config_manager)
----------------------------------------------------------------------------------------------------
end comp zone (DR36) end linac RMS [usual units]
Beam energy [MeV] -0.000% -0.000% 0.000
Beam phase [rad] 0.068% 0.010% 0.001
Norm. $\sigma_\phi$ @ $1\sigma$ [rad] -0.001% -0.002% 0.000
Norm. $\sigma_\phi$ @ $1\sigma$ [MeV] -0.000% 0.000% 0.000
Norm. $\epsilon_{\phi W}$ [$\pi$.rad.MeV] -0.001% -0.001% 0.000
$M_{z\delta}$ 0.000 0.000 nan
----------------------------------------------------------------------------------------------------
[INFO ] [fault_scenario.py ] Elapsed time for optimization: 0:00:06.690424
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
[INFO ] [optimization.py ] The ``fault_scenarios`` must be give to plot.factory for the objectives to be displayed.
The main advantage with the studies in relative phase is that we do not need to recover the absolute beam phase at the exit of the compensation zone. It is one less variable for the optimisation objective.
